Muon Detectors







Our detection technology is now for sale



After more than 10 years of mugraphy technological development and its application in industry, civil engineering and security,

we can produce our muon detectors for you





Detection Technology

We manufacture XY - multi-wire proportional chambers (XY-MWPC)
±2 mm spatial resolution, higher than required for most of the applications.
Muon Systems produces XY-MWPC with 2 different surface sizes: Small 50cm x 50cm and Large 1m x 1m

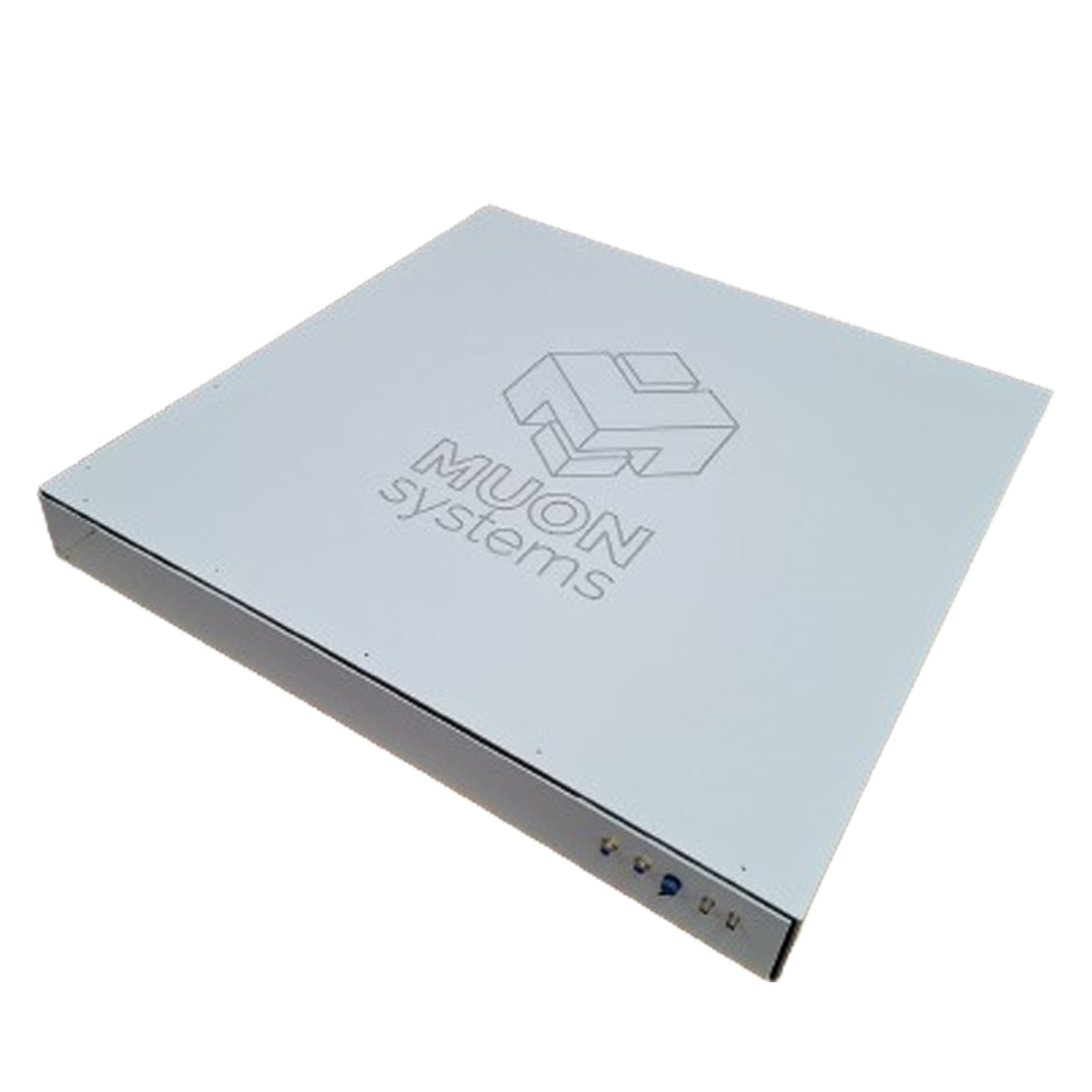

Large Size Muon Chamber

LARGE_SIZE_4

Small Size Muon Chambers

3

Operation of the XY-MWPC

MWPCs are sensitive to the passage of muons, with a detection efficiency > 95%.
When a muon passes through an XY-MWPC, it generates a simultaneous electrical signal in the X and Y layers of the chamber.

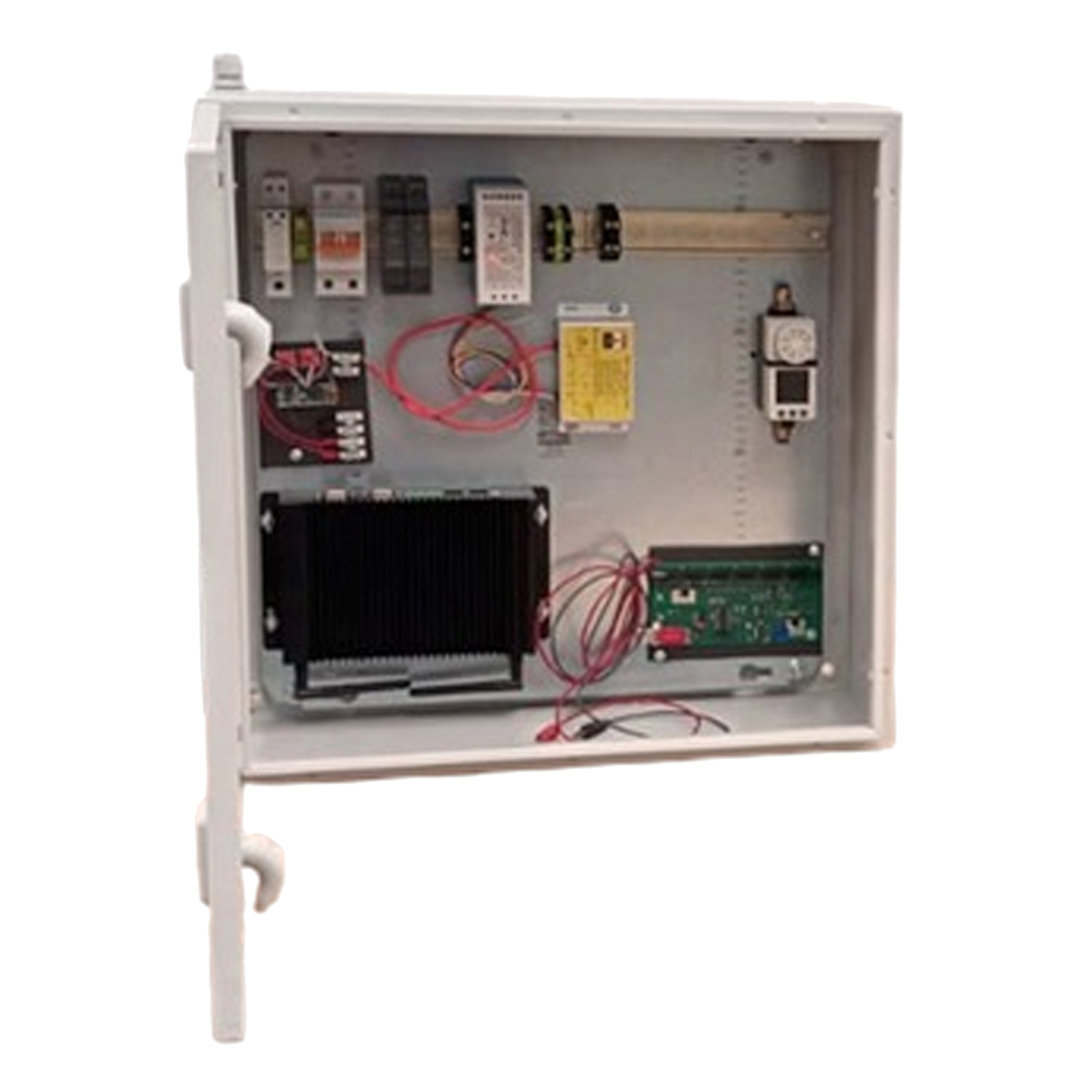

The signal is processed by the readout electronics, transforming the electrical pulse into a digital signal.
The signal recording is handled by a data acquisition (DAQ) system.
The system can process and record up to 60,000 events per second.



Muography Detector

Muography applications require detectors to measure the trajectory of muons.
Each XY-MWPC measures a point along the muon's trajectory.
The minimum detector configuration requires at least two XY-MWPCs.
Configurations with up to six chambers are also available, depending on the application.

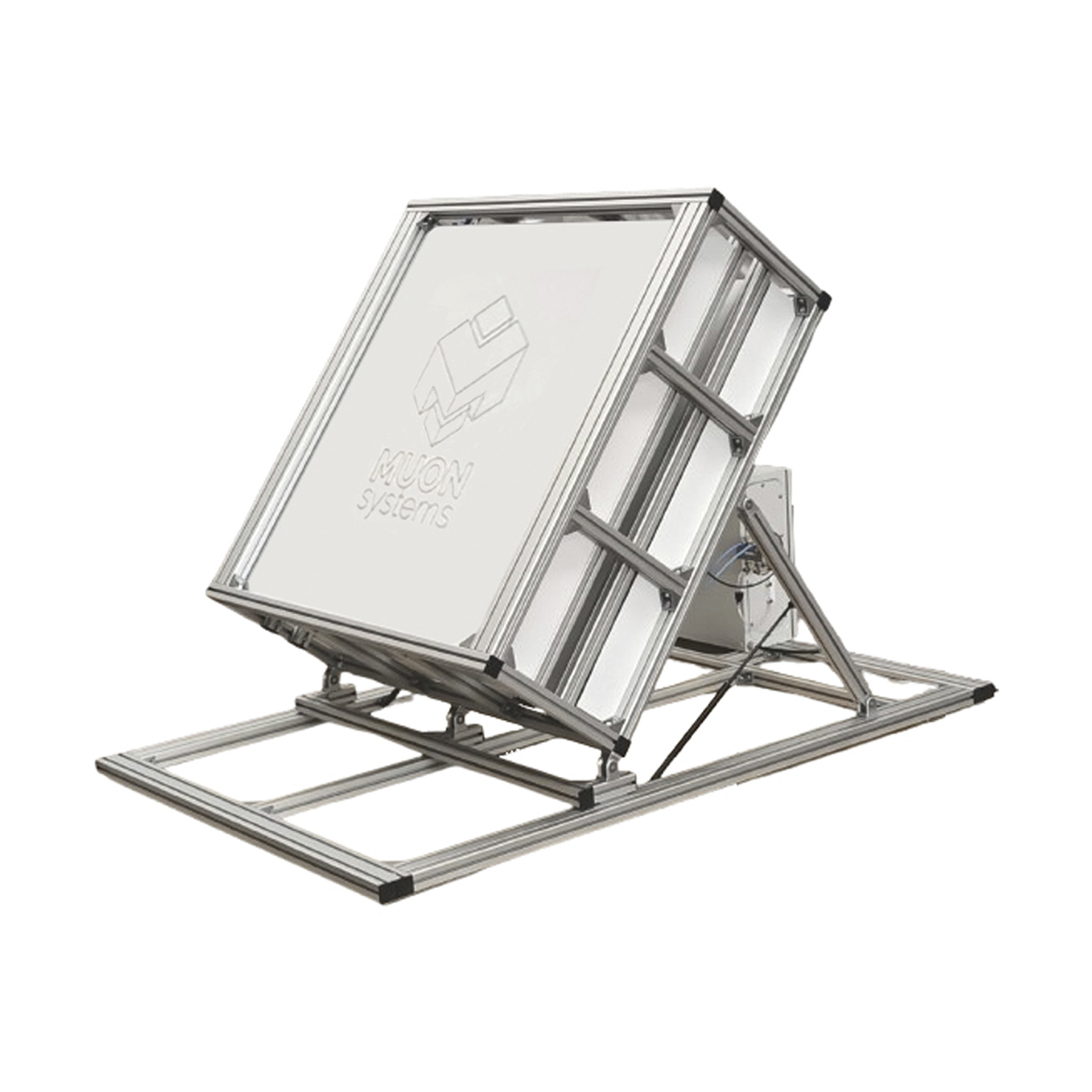

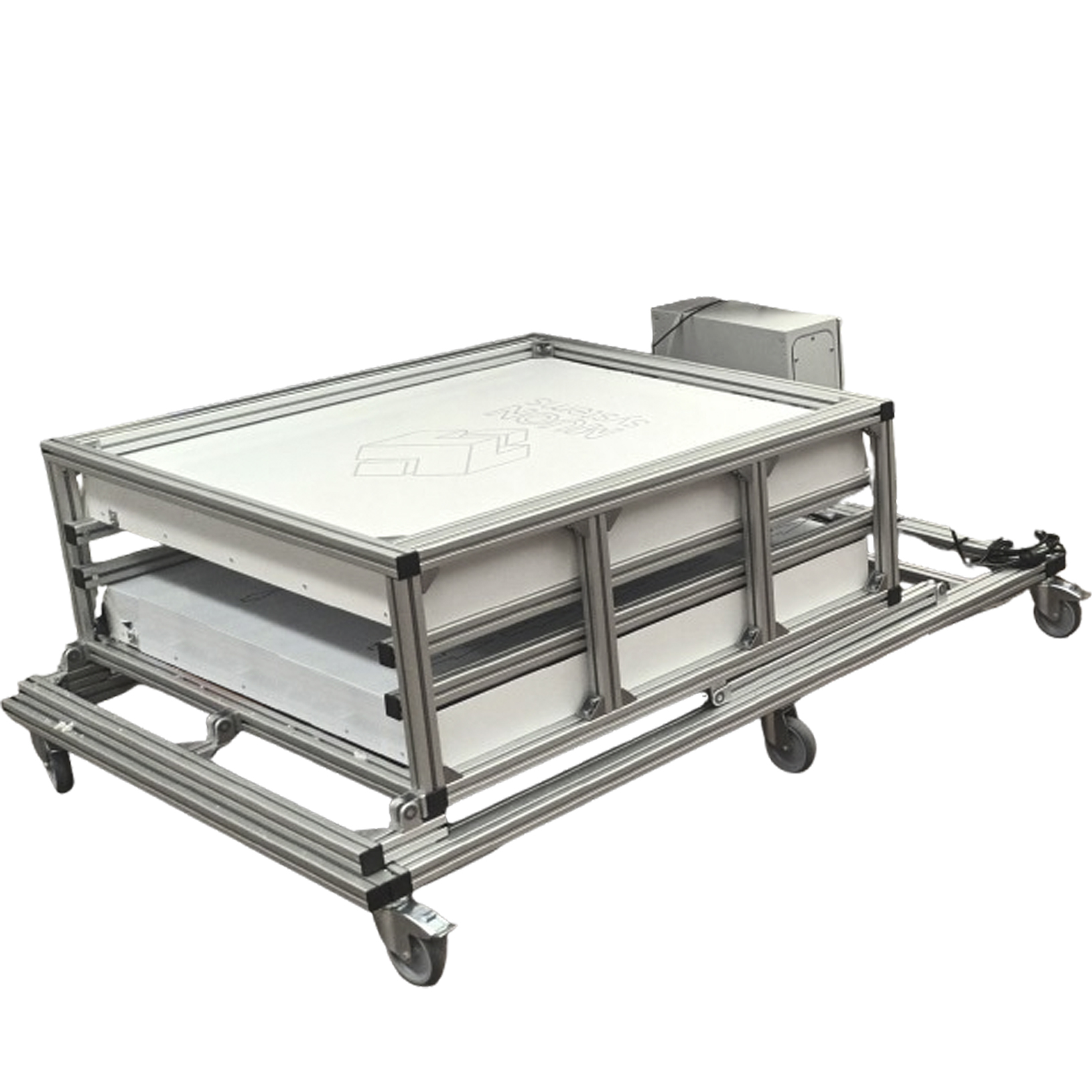

 Large Size Muon Detector

Starting at 83.000 €



  • Detection surface: 90 cm x 90 cm.

  • Synchronous reading channels per chamber: 448.

  • Spatial resolution: 2 mm

  • Angular resolution: < 10 mRad (configurable)

  • Portable & orientable detector.

  • Tilt range: 0º – 90º.

  • Structure size: 190 cm x 130 cm x 72 cm.

  • Available Insulation: protection against temperature, humidity and rain.

  • Gas consumption: ArCO2 (3 l/h)

Small Size Muon Detector

Starting at 57.000 €



  • Detection surface: 45 cm x 45 cm.

  • Synchronous reading channels per chamber: 224.

  • Data outputs: muon counts, spatial position and direction

  • Spatial resolution: 2 mm

  • Angular resolution: < 10 mRad (configurable)

  • Portable & orientable detector.

  • Tilt range: 0º – 90º.

  • Structure size: 58 cm x 75 cm x 36 cm.

  • Available Insulation: protection against temperature, humidity and rain.

  • Gas consumption: ArCO2 (1.2 l/h)





If you are interested in purchasing our detectors, please contact us.
